HDV輸送一體熱風干燥機Hopper dryer with auto loader-SHANGHAI NTC MACHINERY CO.,LTD

Catalog

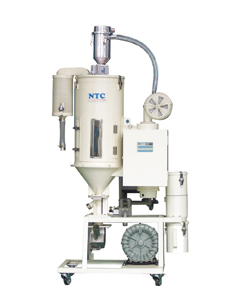

HDV輸送一體熱風干燥機Hopper dryer with auto loader

Update time：2010/11/1 16:15:57

Description:

The previous:HDN熱風干燥機 Hopper dryer
The next one:NDD輸送一體除濕干燥機

Introduction

Features：

Use the microcomputer electric integrated control.

Special design blowing downward air duct and circulation exhaust function, improve the efficiency of dry.

The main electrical components are French Snyder company products.

Sealed High-speed fan,low noise and wind powerful.

With double overheating protection device, ensure the safely operation.

With overload,material short automatic alarm function and alarm lamp.

Standalone filter, easy to clear dust.

To add the discharging stop valve, ensure raw material transmit smooth ，never plugging material.

To add the small cylinder type hopper, ensure raw materials transmit smooth.

User site：

Specification：

Model HDV-15 HDV-25 HDV-50 HDV-75 HDV-100 HDV-150 HDV-200 HDV-250 HDV-300 HDV-500

Power supply AC200/380V50Hz3P

Max temperature Standard 130℃，High temperature 160℃

Drying hopper Load capacity（KG） 15 25 50 75 100 150 200 250 300 500

Blower Max air flow(M3/min) 1.6 2.2 3.5 3.8 4 8 10 12.5 15 20

Max air pressure(Kpa) 370 370 630 630 630 1200 1200 1200 1200 1200

Motor(w) 60 60 120 120 120 370 370 550 550 750

Heater capacity Standard(Kw) 1.5 3.6 4 5.4 6.3 10.8 12.8 17.1 19.8 25

High temperature(Kw) 3.6 4 5.4 6.3 10.8 12.4 17.1 19.8 25 -

Conveying blow power (Kw) 1.1 1.5 2.2

Max conveying capacity (kg/h) 200 400 800

Dimension W(mm) 480 575 575 630 630 750 750 860 760 1200

L(mm) 990 1135 11, 35 1281 1281 1400 1400 1550 1550 1890

H(mm) 1630 1780 1790 1880 1980 2030 2180 2200 2300 2900

Weight(kg) 96 115 120 135 138 232 237 327 373 463
